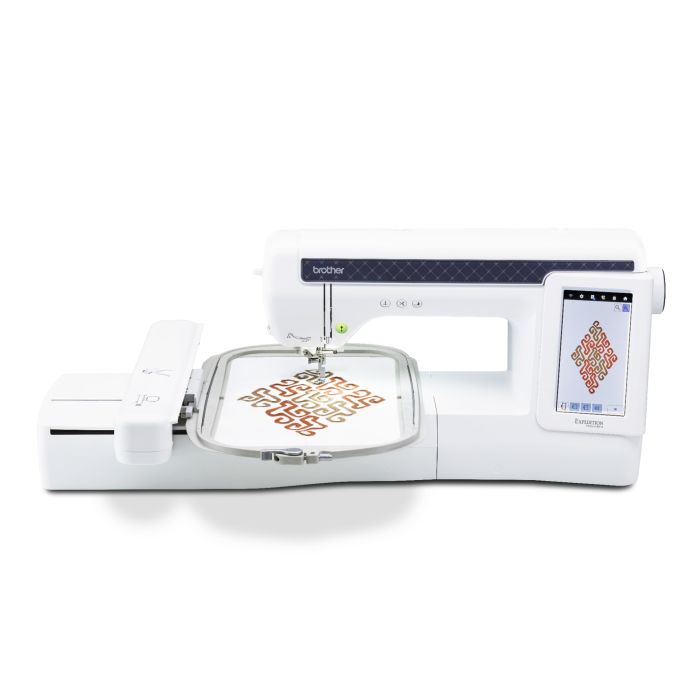

Brother Innov-is Expedition BX1e Embroidery Machine

What's in the Box?

• Embroidery foot "UH+" with LED pointer (fitted to the machine)

• Foobridery couching attachment

• Yarn guide

• Yarn threader

• Ballpoint needle set

  • 75/11 × 3 needles

  • 90/14 × 1 needle

• Bobbins × 10 (one bobbin fitted to the machine)

• Bobbin clips × 10

• Seam ripper

• Scissors

• Cleaning brush

• Large screwdriver

• Small screwdriver

• L-shaped screwdriver

• Disc-shaped screwdriver

• Spool cap – large

• Spool cap – medium (fitted to the machine)

• Spool cap – small

• Thread spool insert (for mini king thread spools)

• Spool net

• Embroidery needle plate cover

• Bobbin case (screw without colour marking) (fitted to the machine)

• Embroidery frame set – 360 x 200mm

• Embroidery frame set – 180 x 130mm

• Embroidery bobbin thread (#90, white)

• Stabiliser material

• Touch pen (stylus)

• Power cord

• Accessory bag

• Extra spool pin and instruction sticker

• Upper spool support

• Lower spool support

• Telescopic thread guide

• Spool pins × 2

• Spool caps (XL) × 2

• Spool cap bases × 2

• Screws and washers

• Spool felts × 2

• Spool holders × 2

• Rings × 4

• Shell-type machine cover

• Basic Operation Manual

General Features

LCD display
Large, clear built-in 7" colour LCD touchscreen.

Stitching speed
Sew and embroider at speeds of up to 850 stitches per minute.

Advanced one-action needle threading system
Simply follow the thread guide, lower the lever and the needle is threaded automatically.

Bobbin winding
Enhanced bobbin winding with an additional spool pin and thread cutter. The extra spool pin allows you to wind a new bobbin without removing the upper thread you are currently using.

Bobbin type
Quick-set, drop-in bobbin.

Thread tension
Fully automatic upper thread tension.

Thread sensors
Alerts you when the upper or lower thread is running low.

Thread cutter button
Automatically trims both the upper and lower threads.

LED lighting
Extra-bright LED lighting illuminates your work area with clean, natural-looking light.

Intuitive user interface
Easy-to-use screen layout with a realistic preview of selected embroidery designs.

Start/Stop button
Large, ergonomically positioned Start/Stop button for convenient operation.

Presser foot up/down button
Conveniently located on the front of the machine for easy access.

Automatic presser foot setting
Automatic presser foot lifting, with an extra-high lift setting for added clearance.

Wireless connectivity
Wireless LAN capability enables connection to mobile apps such as Artspira and My Stitch Monitor, as well as wireless software updates.

USB connectivity
One high-speed USB port.

Updates
Automatic software update capability.

Energy-saving modes
Reduce energy consumption with Eco and Deep Sleep modes.

Multilingual operation
18 built-in operating languages.

Safety features
Easily disengage the needle when changing presser feet and needles for safer operation. The screen can also be locked to help prevent accidental stitch changes.

Embroidery

Embroidery area
Generous 360 x 200mm (14 x 8") embroidery area.

Built-in designs
914 built-in embroidery designs, including 140 frames and 23 fonts.

Embroidery speed
Embroidery speeds of up to 850 stitches per minute.

LED pointer
Laser pointer for precise embroidery design placement.

Two-point positioning
Use the LED pointer to accurately align embroidery designs along cuffs, edges, pockets and more.

Advanced editing functions
Edit designs directly on screen, including horizontal mirroring and pattern rotation in 0.1°, 1°, 10° and 90° increments. Drag and drop designs and zoom in up to 300%.

Text editing functions
Simplified on-screen text input and editing, with a range of functions including text curving, arraying and spacing adjustment.

Font sizes
Small, medium and large font sizes.

Stitch density
Automatic on-screen stitch density adjustment (Stitch-To-Block) for embroidery designs and lettering.

Matrix Copy function
Quickly create repeated designs with automatic colour sorting for faster stitch-outs and fewer thread changes.

Appliqué Creator
Built-in Appliqué Creator allows you to create multiple appliqués within a single hoop, with automatic optimal placement and repetition.

Automatic colour sorting
Automatically sorts colours into an optimised stitching sequence to minimise thread changes.

Thread trimming
Programmable jump stitch cutting.

Basting
Built-in embroidery basting function.

Colour change
Dedicated on-screen button for changing embroidery thread colours.

Resume function
Resume your embroidery from the exact point where you stopped following a power failure or accidental interruption.

Frame detection
Automatically detects the embroidery frame size.

Included embroidery frames
Two embroidery frames are included:

• 360 x 200mm (14 x 8")

• 180 x 130mm (7 x 5")

3-Year Guarantee

The Brother Innov-is Expedition BX1e comes with a 3-year guarantee covering parts and labour.
