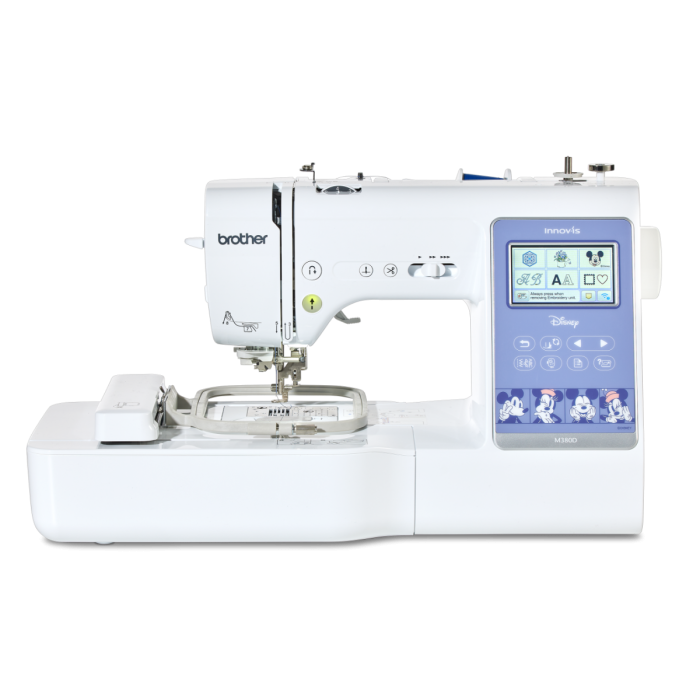

Brother Innov-is M380D Sewing & Embroidery Machine

What’s in the Box?

Presser Feet

• Zigzag Foot “J”

• Monogramming Foot “N”

• Overcasting Foot “G”

• Zipper Foot “I”

• Blind Stitch Foot “R”

• Button Fitting Foot “M”

• Buttonhole Foot “A”

• Embroidery Foot “Q”

Machine Accessories

• Needle set

• Twin needle

• Bobbin (fitted to the machine)

• 4 pre-wound bobbins (60-weight white embroidery bobbin thread)

• 4 bobbin clips

• Seam ripper

• Scissors

• Cleaning brush

• Eyelet punch

• Screwdriver

• Disc-shaped screwdriver

• Extra spool pin

• Large spool cap

• Medium spool cap

• Small spool cap

• Thread spool insert (mini king thread spool)

• Spool net

• Bobbin case (fitted to the machine)

• Foot controller

• Medium embroidery frame set – 10 cm (H) × 10 cm (W) / 4" (H) × 4" (W)

• Accessory bag

• Hard case

• Grid sheet set

• Operation Manual

• Quick Reference Guide

• Embroidery Design Guide

General Features

Advanced Needle Threading System
No more threading frustration. Simply follow the thread guide and use the needle threader lever with one finger for quick and easy threading.

3.7" Colour LCD Touchscreen
Control the machine with a simple touch of the easy-to-read, high-resolution 3.7" LCD touchscreen (432 × 240 pixels). The display features intuitive icons and supports 15 languages.

Super-Bright LED Light
The bright, gentle-on-the-eye LED light provides excellent illumination, making it easier to work with dark fabrics and intricate projects.

Convenient Controls
All essential operating buttons are conveniently located on one central panel, including the thread cutter, needle position up/down and Start/Stop function.

Bobbin Winding System
Winding the lower thread is quick and easy. Simply place the bobbin on the winder and follow the thread guide for straightforward threading.

Quick-Set Bobbin
Simply drop in a full bobbin and you’re ready to start sewing.

Thread Sensors
Upper and lower thread sensors alert you if the thread breaks or runs out, helping you avoid interruptions while sewing or embroidering.

Embroidery Features

200 Built-In Embroidery Designs, Including 65 Disney Designs
Add creativity to every project with 200 built-in embroidery designs, including 65 Disney designs.

11 Embroidery Fonts
Personalise your projects with 11 built-in embroidery fonts. Create monograms, names, labels and feel-good slogans with ease.

100 × 100 mm Embroidery Area
Simply attach the embroidery unit and frame, select your design and start embroidering. Additional frames are available separately.

Wireless LAN Connectivity
Take your creativity further with wireless connectivity. Transfer additional designs using Design Database Transfer (for Windows devices only), or connect to Brother Artspira, Brother’s creative hub, where you can access free designs and projects or create your own custom designs.

USB Port
Insert a USB flash drive to transfer embroidery designs directly to the machine.

Combine Embroidery Patterns
Combine multiple embroidery designs and display them together on screen using the Add function.

Built-In Embroidery Frame Patterns
Choose from 14 stitch types and combine them with 10 different frame shapes, including circles and squares, for additional decorative possibilities.

On-Screen Editing
Enjoy a range of powerful editing functions, including layout adjustment, pattern rotation in 1°, 10° and 90° increments, mirror imaging and scaling from 90% to 120%.

Compatible with Other Manufacturers’ Thread
In addition to the Brother thread chart, the Innov-is M380D can recognise thread from three other manufacturers, providing greater flexibility when choosing embroidery thread.

Sewing Features

7-Point Feed System
The 7-point feed system provides smooth fabric feeding and excellent stitch quality across a wide range of fabric weights.

Free-Arm Sewing
Remove the accessory storage compartment to access the free arm. Ideal for sewing smaller, continuous items such as sleeves, cuffs and armholes.

Convenient Controls
Essential controls are conveniently positioned on one panel, including the thread cutter, needle position up/down and Start/Stop function.

4 Sewing Lettering Styles
Add personalised lettering to labels, monograms and other sewing projects with 4 built-in lettering styles.

Automatic Thread Cutter
Cut the upper and lower threads automatically at the touch of a button.

181 Built-In Sewing Stitches
Choose from 181 built-in stitches for a wide range of sewing and decorative projects. The machine also includes 10 one-step buttonhole styles.

My Custom Stitch™
Design your own stitch patterns or edit the built-in template designs. Save your creations to the machine for future use.

Drop-Feed Lever
Easily lower the feed dogs using the drop-feed lever, making the machine suitable for free-motion sewing, embroidery and quilting.

Slide Speed Control
Adjust the sewing speed from slow to fast for greater control. The slider can also be used to adjust stitch width while sewing zigzag stitches.

Needle Stop Position
Choose whether the needle stops in the up or down position. The down position is particularly useful when turning fabric, sewing corners or joining quilt pieces.

Hard Case
The included hard case helps protect the machine when it is not in use and makes storage more convenient.

Automatic Reverse/Reinforcement Stitch
The machine automatically sews reverse or reinforcement stitches at the beginning and end of your sewing for secure, durable seams.

Mirror Function
Create additional stitch variations by using the mirror function to produce a reversed image of your selected stitch pattern.

Repeated Single Sewing
Choose whether a selected stitch pattern is sewn once or repeatedly, giving you greater control over decorative stitching.

Combining Stitches
Create your own unique stitch combinations by joining different built-in stitches together.

Snap-On Presser Feet
Change presser feet quickly and easily with the convenient snap-on system.

Brother 3 Year Warranty

Covering parts and labour for 3 yearsAt Frank Nutt Sewing Machines we have an in house servicing and repairs team that are on hand to help. Please see our Machine Repairs page for more details or get in touch on 0121 443 5555 / [email protected]. We can answer any queries and talk you through the servicing and repairs process.
