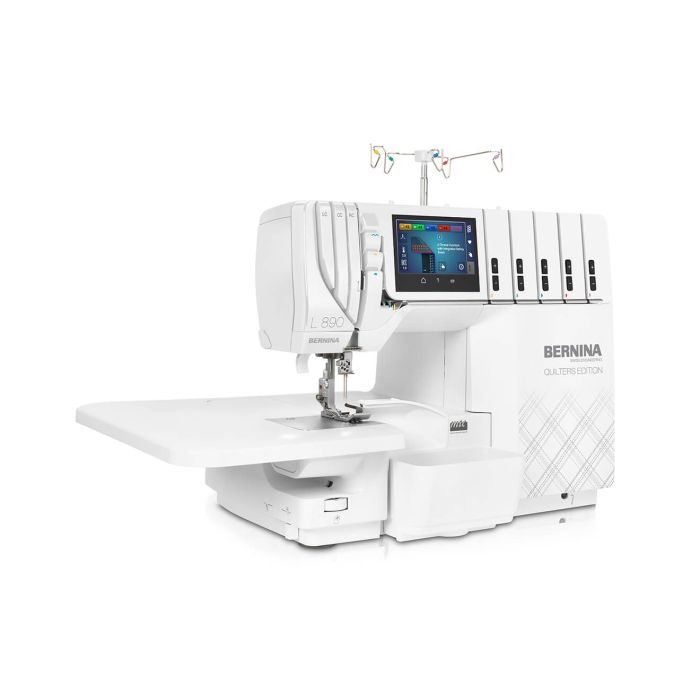

Demo Bernina L890 Patchwork Edition Overlocker and Coverlock

What’s in the Box

Standard Accessories

• Standard Presser Foot Overlock/Coverstitch #C11
  Ideal for general sewing projects using overlock and combo stitches. Markings on the foot provide useful guidance.

• Cover-/Chainstitch Foot #C13
  Improves fabric feeding for flat, even seams and hems on both knit and woven fabrics. Enables precise stitching on curves and tubular items.

• Slide-On Table (L 850 / 890)
  Extends the sewing area to the left of the needle, making it easier to handle larger projects and improving visibility.

• Knee Lifter / Free Hand System (FHS)
  Allows you to raise the presser foot using your knee, keeping both hands free to guide fabric.

• Cut-Offs Bin
  Clips onto the looper cover to collect fabric trimmings and keep your workspace tidy. Can also store the foot control when not in use.

• Freearm Cover
  Covers the free arm opening to create a flat working surface while maintaining access to the stitch plate.

• Right Seam Guide (L 850 / 890)
  Helps guide fabric evenly for accurate cutting and stitching.

• Needle Threader / Inserter (L 850 / 890)
  Simplifies inserting and threading overlocker needles.

• BERNINA Tweezers
  Ideal for threading and removing small thread remnants.

• Threading Wire
  Used as a backup threading method if the air threader is unavailable or blocked.

• Brush (L 850 / 890)
  Removes lint and dust from the looper and stitch plate area.

• Oiler
  For regular maintenance to ensure smooth and reliable operation (uses specialist overlocker oil).

• Screwdriver (1.5 mm, hex head)
  For general adjustments.

• Torx T10 Screwdriver
  For loosening and tightening stitch plate screws.

• CS Lock Tool
  Assists with pulling threads between the foot and stitch plate, locking stitches, and measuring hems and seams.

• Accessory Box (with Extension Box)
  Provides ample storage for presser feet and accessories. Includes a removable lid that doubles as a tray.

• Spool Stabiliser (L 850 / 890)
  Prevents thread cones and spools from vibrating during sewing.

• Spool Discs (x5)
  Ensures smooth thread delivery from smaller spools.

• Spool Nets (x5)
  Supports even unwinding of delicate or speciality threads.

• Needle Set ELx705 CF
  Suitable for general-purpose sewing.

• Needle Set ELx705 CF SUK
  Designed for use with knit fabrics.

• Knife Cover Insert
  Protects fingers and deflects fabric cut-offs during sewing.

• Coverstitch Insert
  Protects the looper area when the upper looper is deactivated.

• Touchscreen Pen (L 890)
  Enables precise navigation of the touchscreen while reducing smudges. Can be stored on the machine or in the accessory box.

• Foot Control
  Starts and stops the machine and controls sewing speed.

• Power Cable
  Connects the machine to the mains supply.

• Dust Cover
  Protects the machine from dust and debris.

Additional Included Extras

• Seam guides in shaft (left & right) – new

• Compensation Foot #C12

• Shirring Foot #C24

• Clear Foot #C27

• Decorative spool pin

• OL/CS height compensation tools

Stitch Variations

Total Number of Stitches: 27

• 4-thread overlock

• 3-thread overlock (wide/narrow)

• 3-thread super stretch

• 3-thread flatlock (wide/narrow)

• 3-thread narrow seam

• 3-thread rolled hem

• 3-thread picot stitch

• 2-thread overlock (wide/narrow)

• 2-thread flatlock (wide/narrow)

• 2-thread rolled hem

• 2-thread wrapped overlock (wide/narrow)

• 2-thread blanket stitch (wide/narrow)

• 4-thread coverstitch

• 3-thread coverstitch (wide)

• 3-thread coverstitch (narrow)

• 2-thread chain stitch

• Chain stitch with 3-thread overlock (wide/narrow)

• Chain stitch with 2-thread overlock (wide/narrow)

Comfort Features

• One-step BERNINA Air Threader (for looper threads)

• Intuitive operation via touchscreen

• Centrally located colour touch screen

• Expert Mode and Guided Mode

• Stitch selection and settings via screen

• Personal Memory for up to 100 individual stitches

• Helpful animations and tutorials

• Creative Sewing Consultant

• Stitch Optimiser

• Free arm

• Sewing space to the right of the needle: 5 5/8" (143 mm)

• Workspace height: 3 3/8" (86 mm)

• BERNINA Free Hand System (FHS) with knee lifter

• Swing-out presser foot with automatic return

• 2-step presser foot lifter with front foot lift (FFL)

• Automatic needle stop (up)

• Programmable needle stop (up/down)

• Needle up/down control via BERNINA foot control

• Stitch-by-stitch sewing capability

• Colour-coded one-path threading

• Thread tension adjustable while sewing

• Thread tension release when presser foot is raised

• Micro Thread Control (mtc)

• Adjustable stitch length while sewing

• Adjustable differential feed while sewing

• Adjustable cutting width while sewing

• Rolled hem lever integrated under stitch plate

• Knife easily engaged/disengaged externally

• Integrated upper looper converter

• LED sewing light

• Thread cutter

• Speed control via touch screen

• Safety switch for open cover and raised presser foot

• Accessories stored in the threader cover

Technical Specifications

• Stitch width: 3–9 mm

• Coverstitch width: 3 / 6 mm

• Combo stitch width: 7–11 mm

• 6-step presser foot pressure

• DC motor

• Maximum sewing speed: 1,350 stitches per minute

• Machine weight: 29.5 lbs (13.4 kg)

2-Year Guarantee

This machine comes with a 2-year guarantee covering both parts and labour.

At Frank Nutt Sewing Machines, we have an in-house servicing and repairs team ready to assist. For more information, please see our Machine Repairs page or contact us directly on 0121 444 3978 or via email at [email protected]. Our team can answer any queries and guide you through the servicing and repairs process.

Delivery

Please allow 3–9 working days for delivery.
